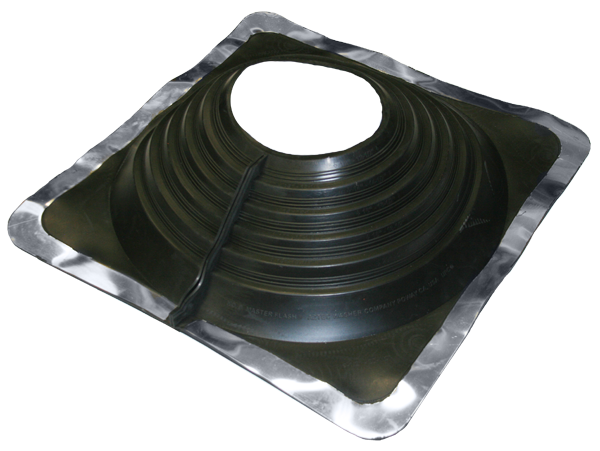

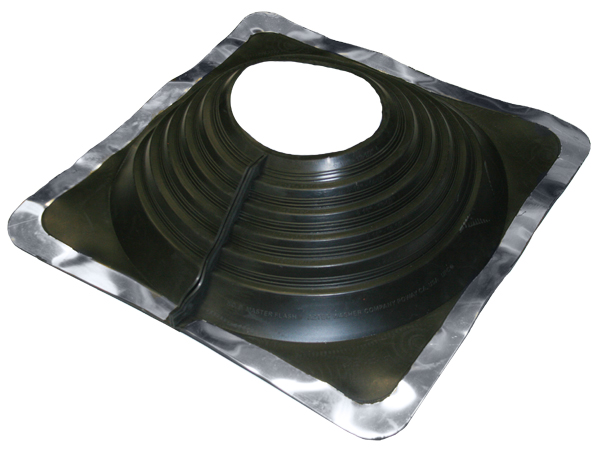

Product: #9 Multi-Flash Master Flash® Pipe Boot Flashing, 20 Year Warranty.
Standard Pipe Sizes: 9 ½" to 20 ½" (241MM to 520MM)
Retrofit Pipe Sizes: 9" to 20" (228MM to 508MM)
Base size: 25" x 25" (635MM x 635MM)
Overall Height: 5-3/4" (146MM)
- Two Simple solutions to flashing a penetration through a metal roof in one.
- Can be used as both a Standard flashing or a Retrofit flashing
- Comes labeled with its corresponding diameter.
- Is marked with dimensions to allow for easy sizing to fit each individual application.
- Aluminum panel allows the pipe boot flashing to conform to any panel configuration and/or roof pitch.
- Available in Black EPDM, Gray EPDM or high temp red silicone for extreme temperatures.
- Specialized compounds designed for maximum resistance to ultraviolet rays, cracking & weathering.
- Flashing can be used for retrofit applications with Stainless Steel gripper.
*Gripper for retrofit not included (check box above)
* Master Flash® is a registered trademark of Aztec Washer Company
