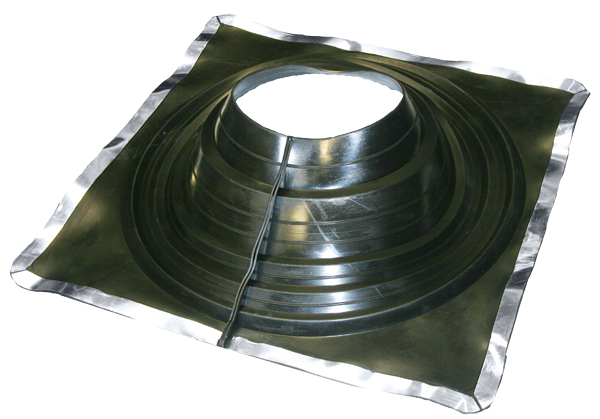

Product: Maxi Multi-Flash Master Flash® Pipe Boot Flashing, 20 Year Warrenty.

Standard Pipe Sizes: 12" to 28½" (305mm to 724MM)

Retrofit Pipe Sizes: 13" to 27" (330MM to 685MM)

Base size: 34" x 34" (863.6MM x 863.6MM)

Features:

• Two Simple solutions to flashing a penetration through a metal roof in one.
• Can be used as both a Standard flashing or a Retrofit flashing
• Comes labeled with its corresponding diameter.
• Is marked with dimensions to allow for easy sizing to fit each individual application.
• Aluminum panel allows the pipe boot flashing to conform to any panel configuration and/or roof pitch.
• Available in Black EPDM or orange silicone for extreme temperature applications
• Specialized compounds designed for maximum resistance to ultraviolet rays, cracking & weathering.

• Flashing can be used for retrofit applications with Stainless Steel gripper.


  *Gripper for retrofit not included (check box above)

 * Master Flash® is a registered trademark of Aztec Washer Company

EPDM and SILICONE Specifications
