METAL ROOFING

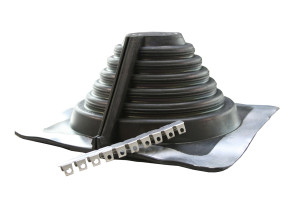

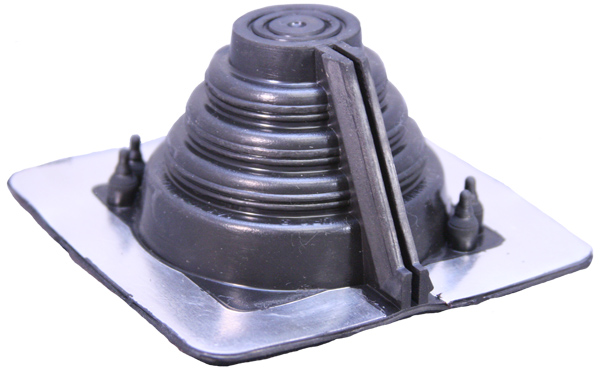

Product: Multi-Port Master Flash® Pipe Boot Flashing, 20 Year Warrenty.

Standard Pipe Sizes:  ¼" to 2¾ " (6.4MM to 70MM)

Retrofit Pipe Sizes: 1¼" to 2¼" (25MM to 57MM)

Base size: 4½" x 4½" (114MM x 114MM)

Features:

• Two Simple solutions to flashing a penetration through a metal roof in one.
• Additional Side ports for running wires through.
• Can be used as both a Standard flashing or a Retrofit flashing
• Uses a stainless steel clamp instead of many small rivets.
• Comes labeled with its corresponding diameter.
• Is marked with dimensions to allow for easy sizing to fit each individual application.
• Aluminum panel allows the pipe boot flashing to conform to any panel configuration and/or roof pitch.
• Available in 10 various colors of EPDM or orange silicone, all resistant to ultraviolet rays, cracking & weathering.

 * Master Flash® is a registered trademark of Aztec Washer Company

EPDM and SILICONE Specifications
