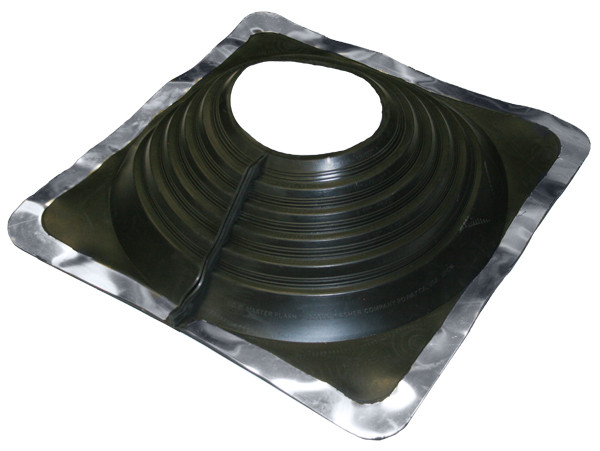

#8 Multi Flash Master Flash Pipe Flashing

For METAL ROOFING Applications

#8 Multi-Flash Master Flash® Pipe Boot Flashing with a 20 Year Warranty.

Standard Pipe Sizes: 6¾" to  13½" (171.4MM to 343MM)

Retrofit Pipe Sizes: 6½" to 12" (165.1MM to 304.8MM)

Base size: 17" x 17" (431.8MM x 431.8MM)

Overall Height:  5-3/4" (146MM)

Features:

• Two Simple solutions to flashing a penetration through a metal roof in one.
• Can be used as both a Standard flashing or a Retrofit flashing.
• Comes labeled with its corresponding diameter.
• Is marked with dimensions to allow for easy sizing to fit each individual application.
• Aluminum panel allows the pipe boot flashing to conform to any panel configuration and/or roof pitch.
• Available in Black EPDM, Gray EPDM or high temp red silicone for extreme temperatures.
• Specialized compounds designed for maximum resistance to ultraviolet rays, cracking & weathering.

• Flashing can be used for retrofit applications with Stainless Steel gripper.


  *Gripper for retrofit not included (check box above)

 * Master Flash® is a registered trademark of Aztec Washer Company
